Module 7 - Building Envelope Systems
ACC Folder Link
https://acc.autodesk.com/docs/files/projects/96f8eb0f-46d0-4f91-a236-0ea912f00020?folderUrn=urn%3Aadsk.wipprod%3Afs.folder%3Aco.RwTX13T7RIytzhgO1b6gmw&viewModel=detail&moduleId=folders
Scored
Created
Feb 12, 2022 5:03 AM
Last Edited
Feb 14, 2022 9:53 PM

Here is my building’s initial estimated EUI from Insight:


Based on analysis in Insight, I have identified the most important factors and the ideal changes needed to minimize the building’s EUI (focusing on the building envelope system).

For WWR:

  • Minimize for southern wall (no more than 50%)
  • Keep between 30 to 65% for north-facing windows
  • Minimize for western wall (no more than 15%)
  • Minimize for eastern wall (no more than 30%)

For glazing:

  • Change window glass to double or triple low-e glazing on all windows

For overhangs:

  • Increase overhangs to 1/2 or 2/3 of the window height on southern wall

For

  • Change exterior wall construction to 12.5” SIP or R-38 wood
  • Change roof construction to R-38 or R-60 roof

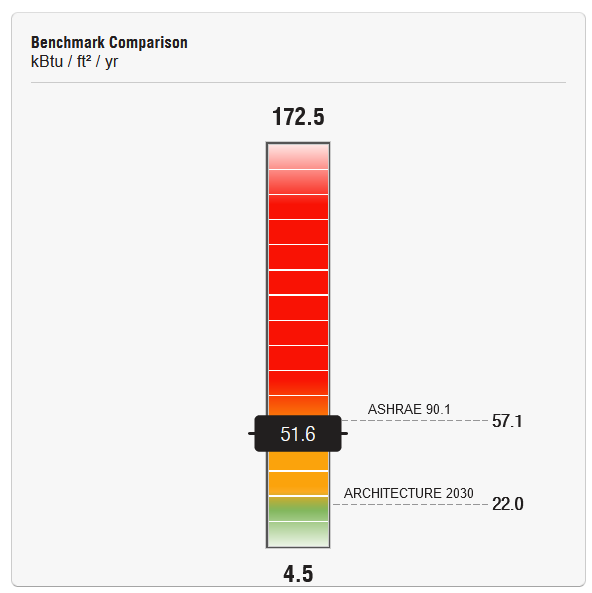

By implementing these changes without adjusting the other factors (e.g. PV and HVAC factors), the estimated EUI decrease significantly:
