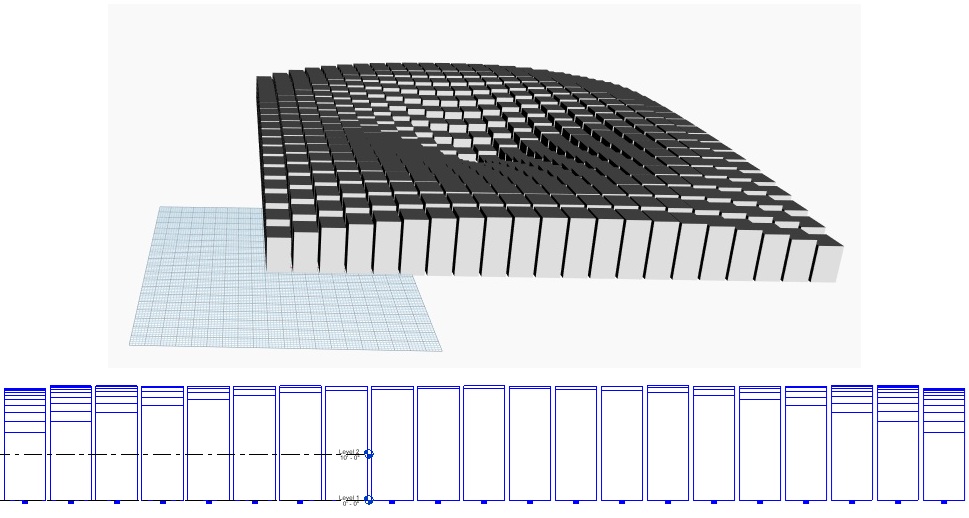

The Dynamo model in Revit for this module generates a parametric grid of cuboids whose heights are controlled by their distance to a central attractor point. This distance is transformed using a sine function to create a continuous wave pattern across the grid. The cuboids are then translated upward by half their height so that all elements share a consistent base elevation. The current settings produce a single sinusoidal cycle for clarity in the displayed output, but the parameters can be adjusted to create more or less frequent rippling effects.
